Product

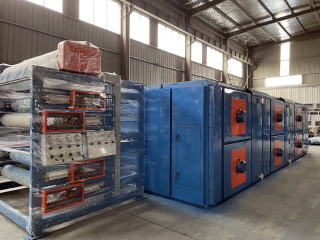

This is an example of procuring all mechanical and electrical equipment for the dryer (heat medium) designed in Japan and made in China.
For domestic use in China

2012/03 Supply to Kunshan, China

Resin processing machine (steam) designed in Japan and made in China
This is an example of procuring all the electrical components of the machine from China.
For domestic use in China

2012/03 Supply to Kunshan, China

Shanghai affiliated factory OEM production
The main parts, PLC, inverter, and instruments are made in Japan, and the sheet metal and minor parts are made in China.
Our original electrical design and PLC program

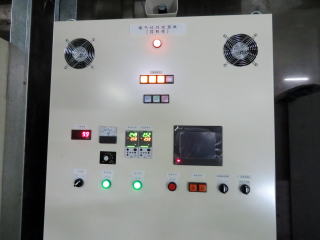

Control panel production can be handled in either Japan or China.
However, if the parts to be mounted affect import/export,
Manufacturing factories may be limited

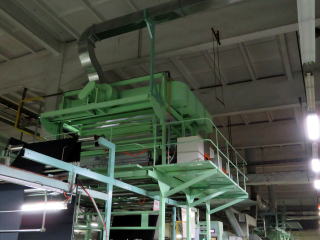

Japanese design

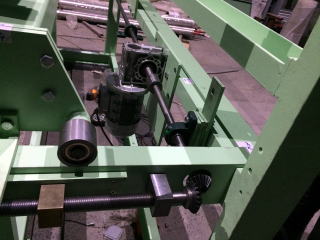

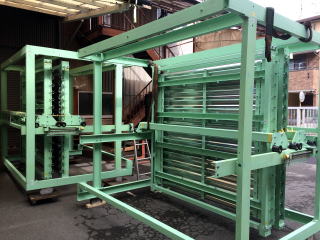

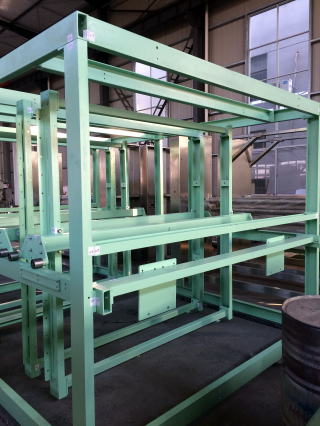

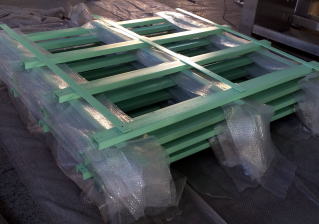

Mounting frames, exhaust related parts and drive motors are manufactured in China.
Electric heaters, calorie regulators, and main parts of the control panel are made in Japan.
This is an example of manufacturing parts that do not affect performance (particularly frame-related parts) in China,
importing them to Japan, and combining them with main parts.

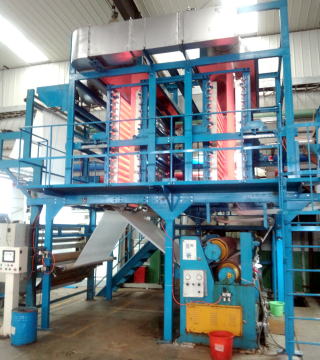

2013/11 Supply to Kunshan, China
2018/02 Supply to Nantong, China
2018/09 Supply to Nantong, China
2019/09 Supply in Japan
2021/10 Supply in Japan

Designed in Japan All major parts are made in Japan

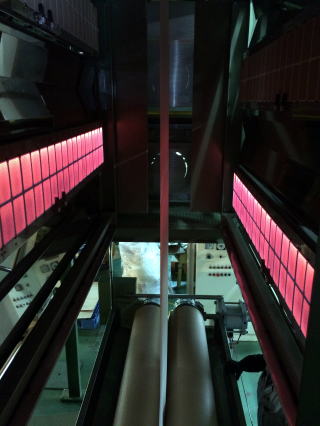

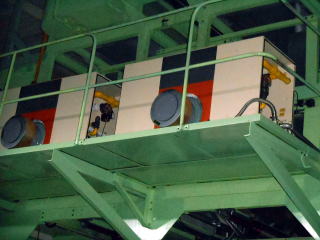

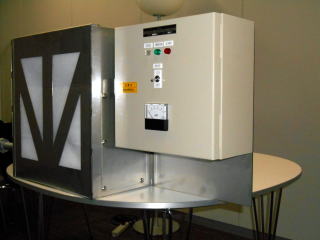

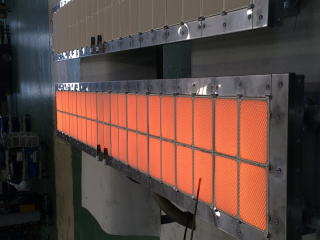

Ceramic gas infrared burner (replaceable for each block)
Mounting frame, exhaust system and drive motor can be manufactured in China.

Adoption of original gas premixing unit and forced cooling system during fire extinguishing
Burner combustion control by controlling the amount of combustion air and remote adjustment of the distance
between the combustion surfaces Stable combustion by pressure control of the combustion blower
(Filter clogging notification function)

Quick cool-down is realized by evacuation device (air cylinder type) and forced cooling when extinguishing a fire.

Machine parts production at Chinese OEM factory Assembled in Japan

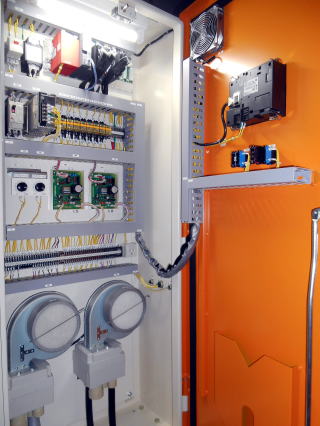

Control panel production and electrical components are made in Japan

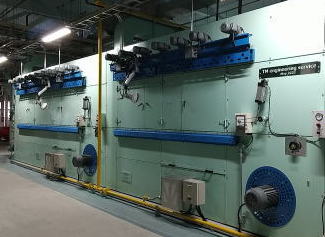

Equipped with a gas pilot burner, the temperature inside the machine is kept constant by hot air circulation.
It has four independent combustion control circuits in the front, back, left and right,
Temperature distribution is controlled by sensors in various parts of the machine.

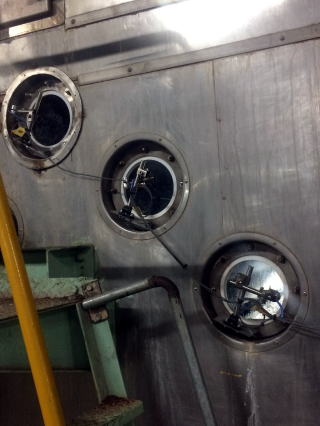

You can see the inside while driving through the large heat-resistant glass,
contribute to the operation
All drive units are connected via an integrated line operation system.
Settings can be made on the maintenance screen to ensure reproducibility
It is also effective for setting various conditions.
Equipped with a data logging system, setting conditions and each time
The current value is recorded, and production management and diagnosis of each part are
It is possible to grasp in chronological order
★ The data logging system must be equipped with the necessary sensors and adjustment equipment according to the content you want to record.
At our company, we are actively consulting not only for new equipment but also for introduction to existing equipment.

2020/05 Supply in Japan

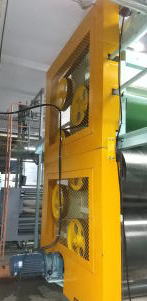

Designed in Japan All major parts are made in Japan

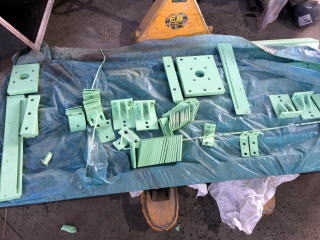

The parts that make up the frame and skeleton can also be manufactured overseas.

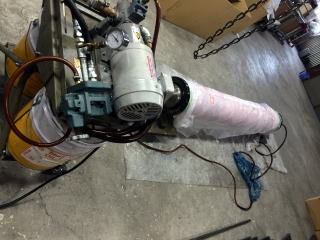

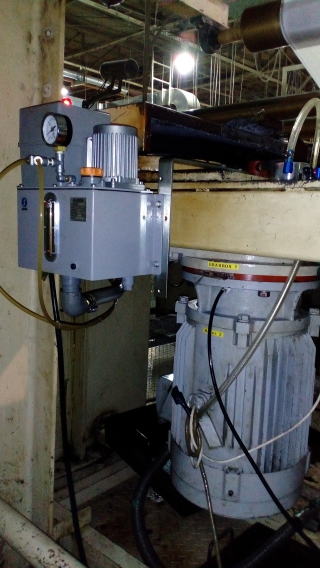

Our original equipment is used for the hydraulic control unit,
and it is possible to set the opening and closing of the roller and the actual pressurization with independent control operations.

An automatic cleaning device can be added as an option,
Washing pump water volume, valve opening time, air blow time,
You can also set screen settings such as the intermittent time of the variable cleaning nozzle.

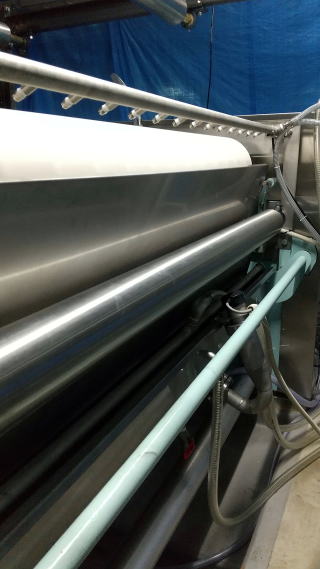

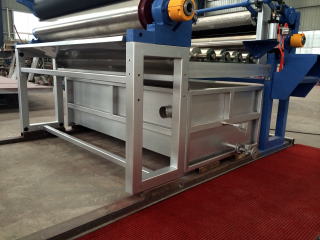

Partner factory in China OEM production

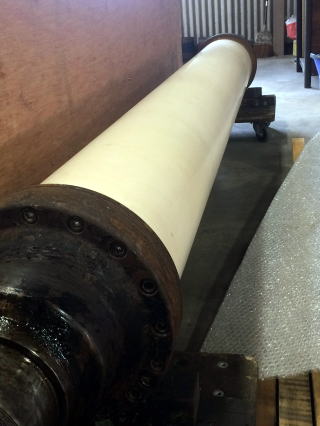

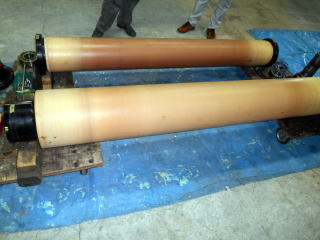

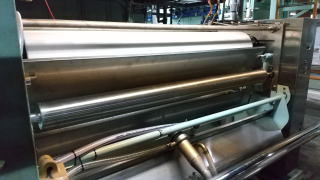

In the manufacturing process of the cylinder,
it is manufactured at a local pressure vessel certified factory with a maximum steam pressure of 0.4Mpa, but our purpose specifications are imported as a normal steam pressure of 0.19Mpa (Teflon coating is separately coating)
It is possible to manufacture from 2000mm in total length, Φ570 or Φ800.
We manufacture according to the application, such as the number of cylinders, support frame,
drive layout, etc., and also support interlocking with existing equipment and other dryers.

2020/06 Supply in Japan
2021/08 Supply in Japan
2021/12 Supply in Japan

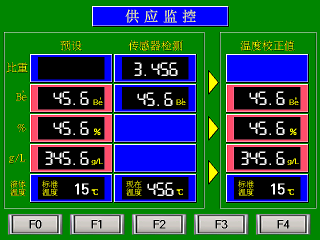

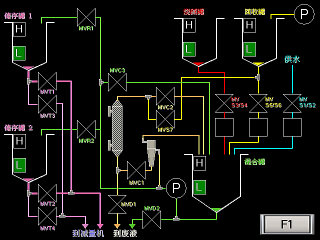

It measures the differential pressure in the liquid and detects the concentration of caustic soda as specific gravity.
The caustic soda amount g/L in a unit liquid can be quickly derived by programming map control including our own liquid temperature correction while making use of the detection speed of specific gravity measurement.
After grasping each amount of the aqueous solution, we have configured a system that mixes while reusing the actual residual liquid and recovered liquid without waste.
It is configured as a mixing device, and is equipped with many automatic valves, flow meters, and pumps for mixing, collecting, and sending liquids to spare tanks. Very little work is required.

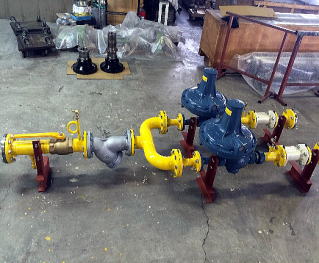

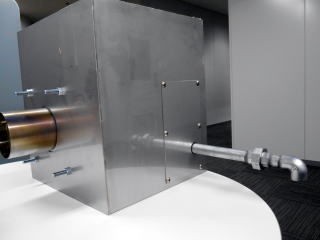

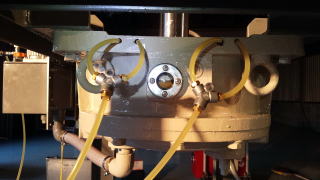

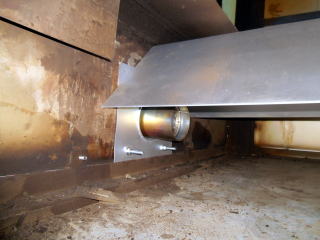

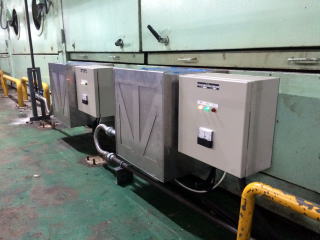

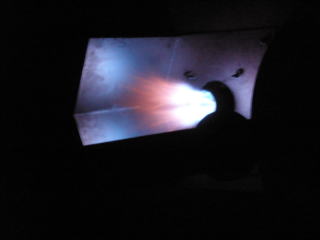

Realization of temperature control by variable combustion by adopting a DC motor type combustion blower The equipment necessary for safe combustion is unitized and configured to input/output signals for control/management.
Rod type / UV type can be selected for the flame detector
Temperature management and control can be linked with menu operation and data logging system via PLC.
In particular, it is a unit that can shorten the construction period and reduce the cost burden when replacing aging combustion equipment or switching to gas combustion as a heat source.
2015/10-2016/09 Nantong, China Plant gasification work, supply for renewal of existing burners in Japan and overseas

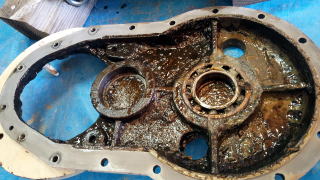

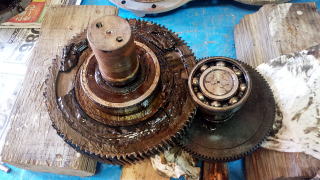

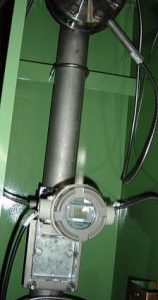

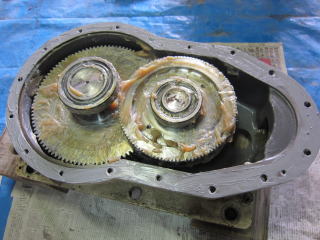

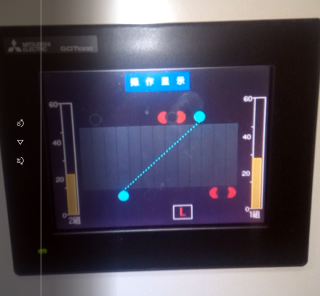

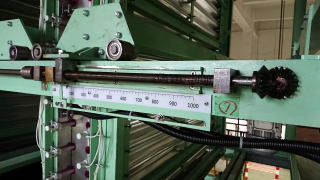

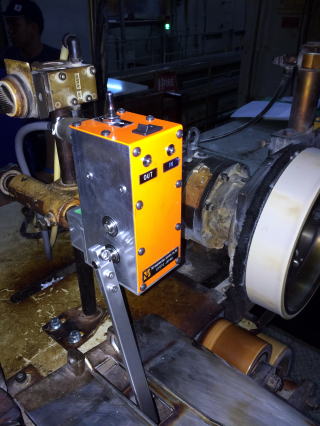

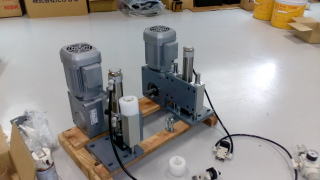

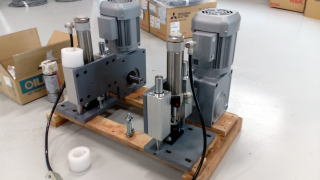

As an alternative to the conventional AC synchro oscillator, the absolute system RE is built in through our original gear box, and it is possible to receive the axial load in a wide range when mounting.
By detecting the angular position as a digital value, it is possible to set the initial position and limit detection freely with the parameters of this machine.
In actual operation, the line operation system including adjustment of control sensitivity and dead band

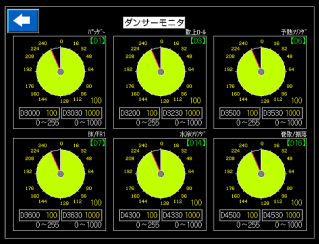

Each position monitor is also displayed on the screen
A PLC is always required for the signal input destination, but the subsequent control output can be adapted according to the application, such as matching with the conventional analog control panel or developing control signals to the inverter via a communication link. doing

2020/06 Supply in Japan
2021/08 Supply in Japan
2022/03 Supply in Japan

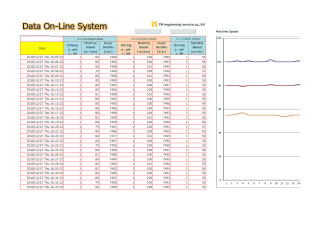

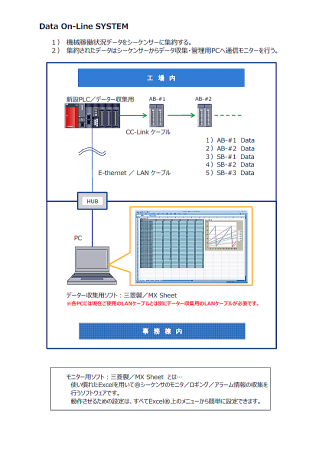

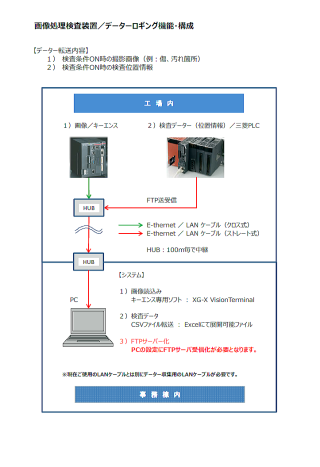

★Data online monitoring system
This is an example of a system that logs changes in the operation status, operating status, temperature, and other production conditions of production equipment at regular intervals.
The system configuration is suitable for monitoring the operation status.

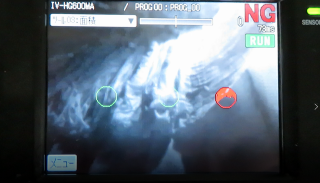

★Database Management Judgment System
In particular, logs are saved based on the inspection start/stop and NG triggers,to create a database
Based on the database, it is used for selection, judgment, and quality control
And It is possible to create a dedicated system such as building an original inspection judgment system program and sharing data with the final inspection line.

2014/05 Supply to Philippines
2015/10 ～ 2018/09 Supply to Nantong, China
2019/03 Supply in Japan

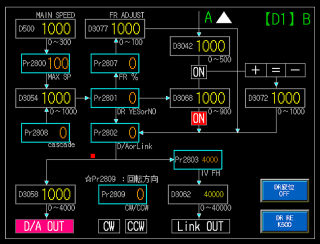

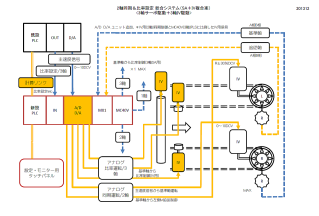

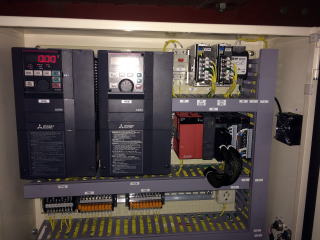

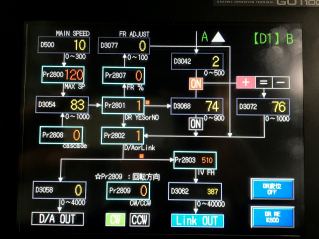

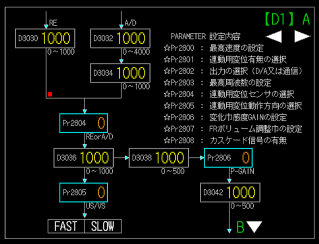

For the signal flow, parallel or cascade can be selected for each drive motor, and the reference signal can be assigned to each section.
Analog control or CC-Link control can be selected for inverter drive control. Yes, all parameterized settings can be entered on the screen

It is installed as standard in our new production equipment
In addition, digital interlocking with ratio control of servo motor specifications is also provided
You can choose the application place together with analog ratio control

2017/05 Supply in Japan
2020/05 Supply in Japan
2021/09 Supply in Japan
2022/01 Supply in Japan

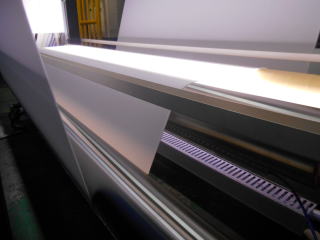

Optimal speed control is constructed based on the signal from the sensor, and the amount of withdrawal to keep the amount of retention constant.
Settings and adjustments can be entered as parameters from the screen.

2017/11 Supply to Nantong, China

We manufacture some models under license for the domestic market in China.
In the past, we had expanded our business to include OEM and partial manufacturing as our supplier, but since the 2020 corona crisis,the necessary travel operations have been reduced.
In the midst of this, we have started a business format in which all production and sales are entrusted to partner companies
All specifications are made up of parts that can be procured in China
Only designs that are suitable for the local area
The local affiliated company will be responsible for everything from production to completion of trial operation and will sell the equipment
This machine is not handled as a reverse import to Japan.

2022/07 Supply to China

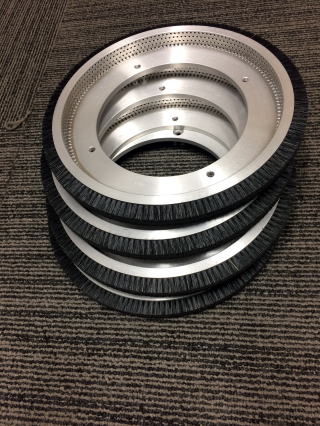

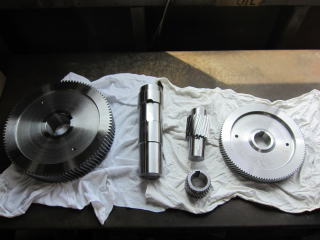

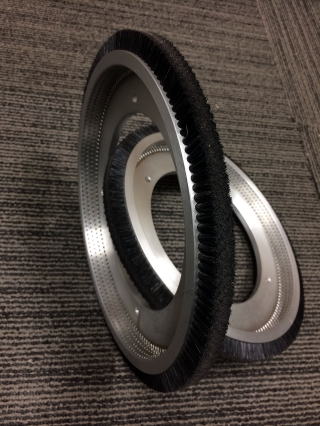

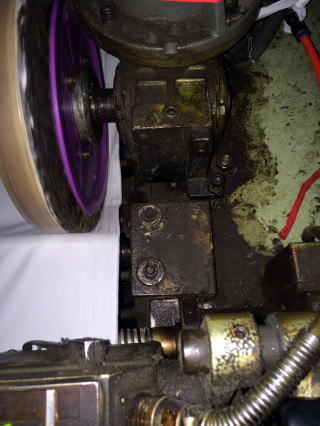

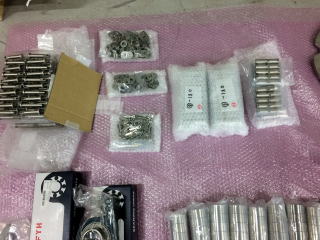

Brush wheel

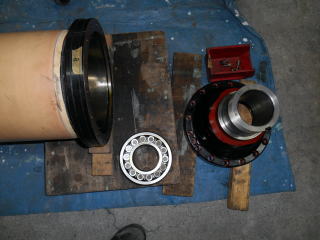

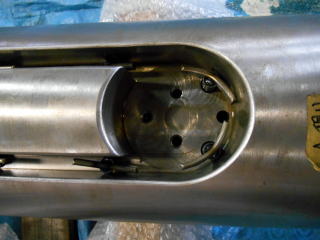

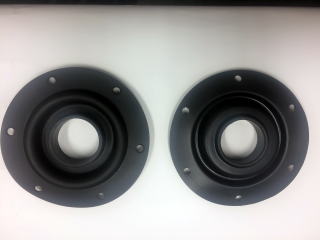

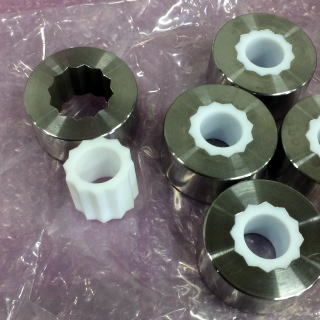

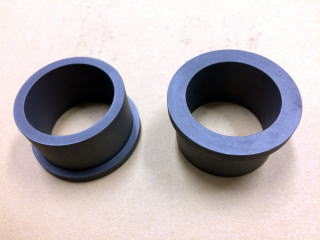

Carbon & Steam seal

Stainless steel/Titanium

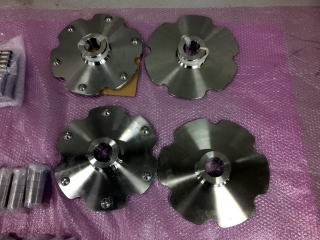

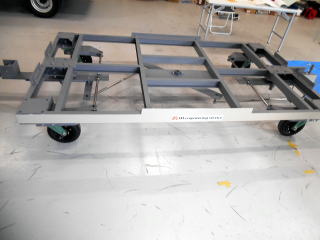

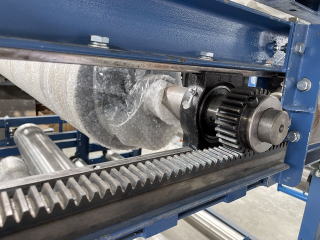

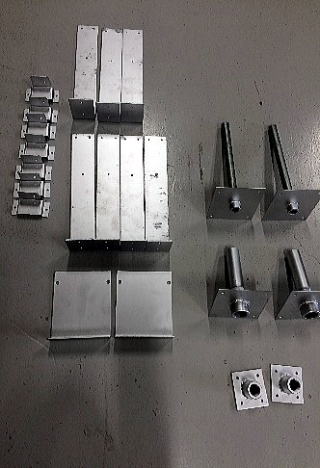

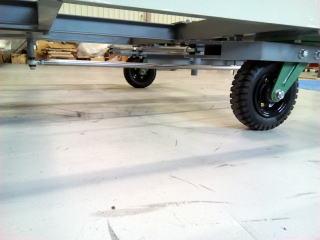

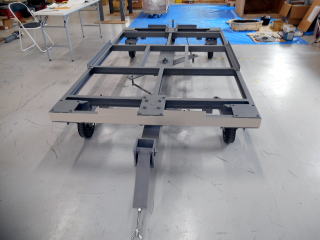

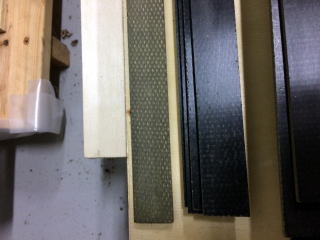

Conveyor parts

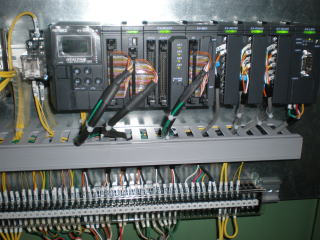

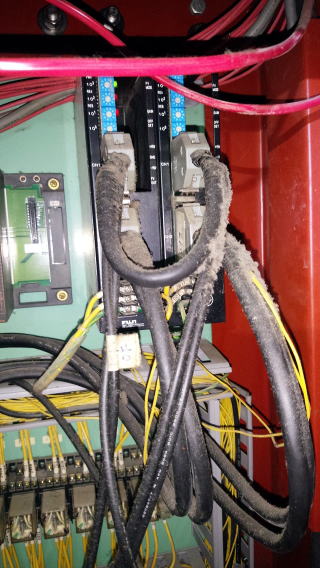

Mitsubishi and other general-purpose ratio setters have been discontinued
Replaced with PLC motion controllers

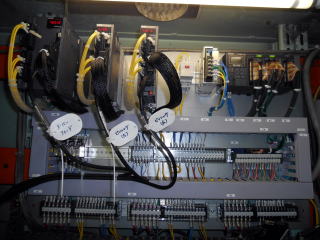

This system replaces the setting device with a PLC program as a countermeasure against the discontinuation of the production of the ratio setting device required for ratio control (ratio operation) of the existing equipment, and is configured in consideration of matching with the upper and lower devices of the existing equipment.
Simple inspections and ratio change tests are possible with a touch panel
It does not use a communication link type motion controller and supports existing and stock servo motors as a conventional terminal connection method

2012/12 Supply to Philippines
2014/09 Supply in Japan
2019/03 Supply in Japan
2022/03 Supply in Japan
